Product Details
DETAILS
| Outer diameter | 2~800mm | Length: | 2m,3m,5.8m,6m, or as required. | |||||
| Processing | Extrusion/cold drawn | Standard: | ASTM，AISI，JIS，GB， DIN，EN | |||||
| Certification: | ISO, SGS，BV | |||||||
| Surface finish | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required. | |||||||
| Grade | GB | |||||||
| T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1, | ||||||||
| ASTM | ||||||||
| C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, | ||||||||
| C10930,C10940,C11000,C11300,C11400,C11500,C11600,C12000,C12200, | ||||||||
| C12300,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C14700, | ||||||||
| C15100,C15500,C16200,C16500,C17000,C17200,C17300,C17410,C17450, | ||||||||
| C17460,C17500,C17510,C18700,C19010,C19025,C19200,C19210,C19400, | ||||||||
| C19500,C19600,C19700, | ||||||||
| JIS | ||||||||
| C1011,C1020,C1100,C1201,C1220,C1221,C1401,C1700,C1720,C1990, | ||||||||
| Payment Terms | T/T, L/C at sight,West Union, | |||||||
| Packing | standard export packing (inside:water proof paper,outside:steel covered with strips and pallets) | |||||||
| Container size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) | |||||||
| Loading port | any port in China | |||||||
Size | Thickness:0.1mm~500mm Width:4mm~2500mm Length:1m~12m or as required. |
Hardness | 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc |
Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required |
Package | Standard export package ,or as required. |
Application | 1. Pancake Coil for ACR, General Engineering Applications 2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration 4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6.PE-coated copper tube for water/gas/oil transportation system 7.Semi-finished Copper tube for industrial applications |
Export to | Singapore,Indonesia,Ukraine,Korea,Thailand,Vietnam,Saudi Arabia,Brazil,Spain,Canada, USA,Egypt,India,Kuwait,Dubai,Oman,Kuwait,Peru,Mexico,Iraq,Russia,Malaysia,etc |

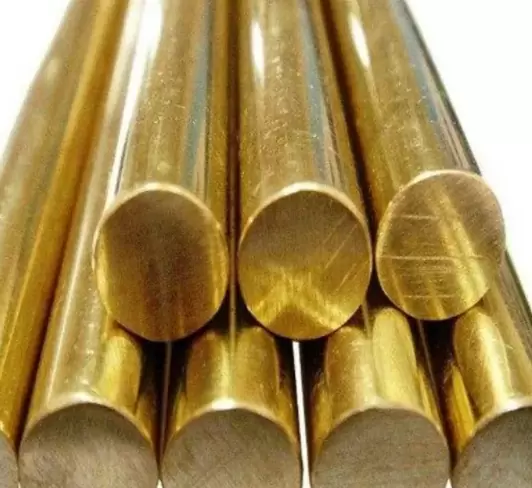

Copper bar(合金铜)
Copper rod performance parameters（铜棒）
Alloy Grade | Cu | Pb | AI | Fe(max) | Sn | Zn | Impurity |
Hpb63-3 | 62.0-65.0 | 2.4-3.0 | – | 0.1 | – | REM | 0.75 |
Hpb63-0.1 | 61.5-63.5 | 0.05-0.3 | – | 0.15 | – | REM | 0.5 |
Hpb62-2 | 60.0-36.0 | 1.5-2.5 | – | 0.15 | – | REM | 0.65 |
Hpb60-3 | 58.0-61.0 | 2.5-3.5 | – | 0.3 | 0.3 | REM | 0.8 |
Hpb59-1 | 57.0-60.0 | 0.8-1.9 | – | 0.5 | – | REM | 1.0 |
Hpb58-3 | 57.0-59.0 | 2.5-3.5 | – | 0.5 | 0.5 | REM | 1.0 |
C3601 | 59.0-63.0 | 1.8-3.7 | – | 0.3 | Fe+Sn:0.5 | REM | – |
C3602 | 59.0-63.0 | 1.8-3.7 | – | 0.5 | Fe+Sn:1.0 | REM | – |
C3603 | 57.0-61.0 | 1.8-3.7 | – | 0.35 | Fe+Sn:0.6 | REM | – |
C3604 | 57.0-61.0 | 1.8-3.7 | – | 0.5 | Fe+Sn:1.0 | REM | – |
C3605 | 56.0-60.0 | 3.5-4.5 | – | 0.5 | Fe+Sn:1.0 | REM | – |
CW602N | 61.0-63.0 | 1.7-2.8 | 0.05 | 0.1 | 0.1 | REM | Ni 0.3 others total 0.2 |
CW614N | 57.0-59.0 | 2.5-3.5 | 0.05 | 0.3 | 0.3 | REM | Ni 0.3 others total 0.2 |
CW617N | 57.0-59.0 | 1.6-2.5 | 0.05 | 0.3 | 0.3 | REM | Ni 0.3 others total 0.2 |
C36000 | 60.0-63.0 | 2.5-3.0 | – | 0.35 | – | REM | – |
C36010 | 60.0-63.0 | 3.1-3.7 | – | 0.35 | – | REM | – |
合金铜
Alloy Grade | Cu | Pb | AI | Fe(max) | Sn | Zn | Impurity Total |
H80 | 78.5-81.5 | 0.05 | – | 0.05 | – | REM | 0.3 |
H70 | 68.5-71.5 | 0.03 | – | 0.1 | – | REM | 0.3 |
H68 | 67.0-70.0 | 0.03 | – | 0.1 | – | REM | 0.3 |
H65 | 63.0-68.5 | 0.09 | – | 0.07 | – | REM | 0.45 |
H63 | 62.0-65.0 | 0.08 | – | 0.15 | – | REM | 0.5 |
H62 | 60.5-63.5 | 0.08 | – | 0.15 | – | REM | 0.5 |
H59 | 57.0-60.0 | 0.5 | – | 0.3 | – | REM | 1.0 |
C2600 | 68.5-71.5 | 0.05 | – | 0.05 | – | REM | – |
C2700 | 63.0-67.0 | 0.05 | – | 0.05 | – | REM | – |
C2720 | 62.0-64.0 | 0.07 | – | 0.07 | – | REM | – |
C2800 | 59.0-63.0 | 0.1 | – | 0.07 | – | REM | – |
Copper Tube/Copper Pipe （紫铜或黄铜管，有直管，有盘管）
Standard | ASTM,DIN,EN,ISO,JIS,GB | |
Material | T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800, C10910,C10920,TP1,TP2,C10930,C11000,C11300,C11400,C11500, C11600,C12000,C12200,C12300,TU1,TU2,C12500,C14200,C14420, C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000, C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600, C70620,C71000,C71500,C71520,C71640,C72200,etc. | |
Shape | Round, square, rectangular, etc. | |
Specifications | Round | Wall thickness: 0.2mm~120mm |
Outside Diameter: 2mm~910mm | ||
Square | Wall thickness: 0.2mm~120mm | |
Size: 2mm*2mm~1016mm*1016mm | ||
Rectangular | Wall thickness: 0.2mm~910mm | |
Size: 2mm*4mm~1016mm*1219mm | ||
Length | 3m,5.8m, 6m, 11.8m, 12m, or as required. | |
Hardness | 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc | |
Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required. | |
Price Term | Ex-work, FOB, CFR, CIF, etc. | |
Payment Term | T/T, L/C, Western Union, etc. | |
Delivery Time | According to order's quantity. | |
Package | Export standard package: bundled wooden box, suit for all kinds of transport, or be required. | |
Application | Copper pipe is the first choice of residential housing water pipes, heating, cooling pipes installed. Copper products are widely used in aviation, aerospace, ships, military industry, metallurgy, electronics, electrical, mechanical, transportation, construction and other fields of the national economy. | |
Brass Strip rolls / Brass Coil(黄铜）
Standard | JIS H3250-2006,ASTM B152M,GB/T2040-2008,ASTM B36,ASTM B194,ASTM B888,ASTM B19,ASTM B122,etc |
Material | C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000, C27200,C27400,C28000,H59,H62,H80,CuZn40,CuZn37,CuZn39,C61400,etc |
Thickness | 0.1-20mm |
Width | 1-1500mm |
Surface | mill,bright,mirror,brush,hair line,sand blast,antique |
Copper Plate/Sheet(紫铜)
Standard | JIS H3250-2006,ASTM B152M,GB/T 2040-2008,etc |
Material | T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000, C71500,C71520,C71640,C72200,etc |
