Product Overview

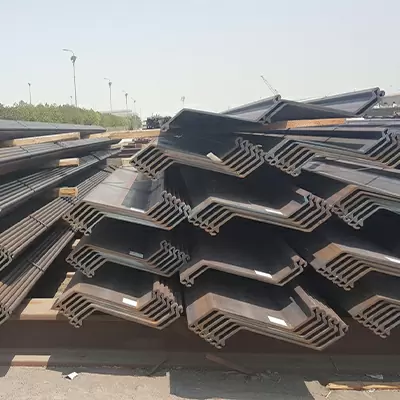

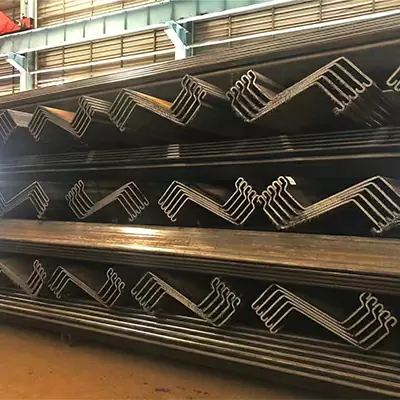

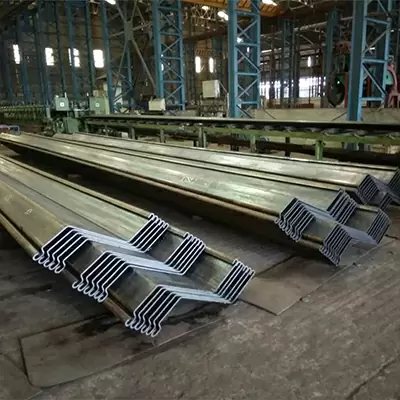

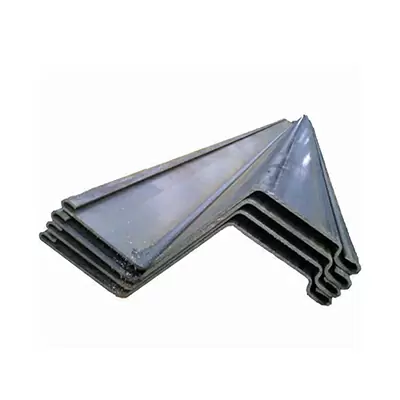

Production of large size Z-shaped steel sheet piles, U-shaped steel sheet piles and other ultra-large profile products.
Product use
Municipal, water conservancy, railways, ports and wharfs, civil buildings, civil air defense, sewage treatment, cofferdam construction, flood protection and other fields, such as bridges, underground pipe galleries, urban light rail, port dams, temporary support cofferdams and other basic projects.
Production scope
Hot rolled U/Z steel sheet pile | JU400*100 ~ JU750*255JZ12-770 ~ JZ46-700N | Q355BSY295/SY390S320GP/S355GPKW420 | GB T 20933-2014JIS A 5528:2012EN 10248-2007 |
Common specifications of national standard and Japanese standard
model(Width × Height) | Corresponding Japanese standard | Effective widthWmm | Effective heightHmm | Web thicknesstmm | Single rootSingle root | er meter of slab surface |
Cross-sectional areacm2 | Theoretical weightkg/m | Moment of inertiaIxcm4 | Section modulusWxcm3 | Cross-sectional areacm2 | Theoretical weightkg/m2 | Inertial distanceIxcm4 | Section modulusWxcm3 |
JU400×100 | Ⅱ | 400 | 100 | 10.5 | 61.18 | 48.0 | 1240 | 152 | 153.0 | 120.1 | 8740 | 874 |
JU400×125 | Ⅲ | 400 | 125 | 13.0 | 76.42 | 60.0 | 2220 | 223 | 191.0 | 149.9 | 16800 | 1340 |
JU400×150 | ⅢA | 400 | 150 | 13.1 | 74.40 | 58.4 | 2790 | 250 | 186.0 | 146.0 | 22800 | 1520 |
JU400×170 | Ⅳ | 400 | 170 | 15.5 | 96.99 | 76.1 | 4670 | 362 | 242.5 | 190.4 | 38600 | 2270 |
JU600×210 | ⅣW | 600 | 210 | 18.0 | 135.3 | 106.2 | 8630 | 539 | 225.5 | 177.0 | 56700 | 2700 |
JU750×225 | - | 750 | 225 | 14.5 | 140.6 | 110.4 | 10390 | 601 | 188.0 | 147.2 | 56240 | 2500 |
