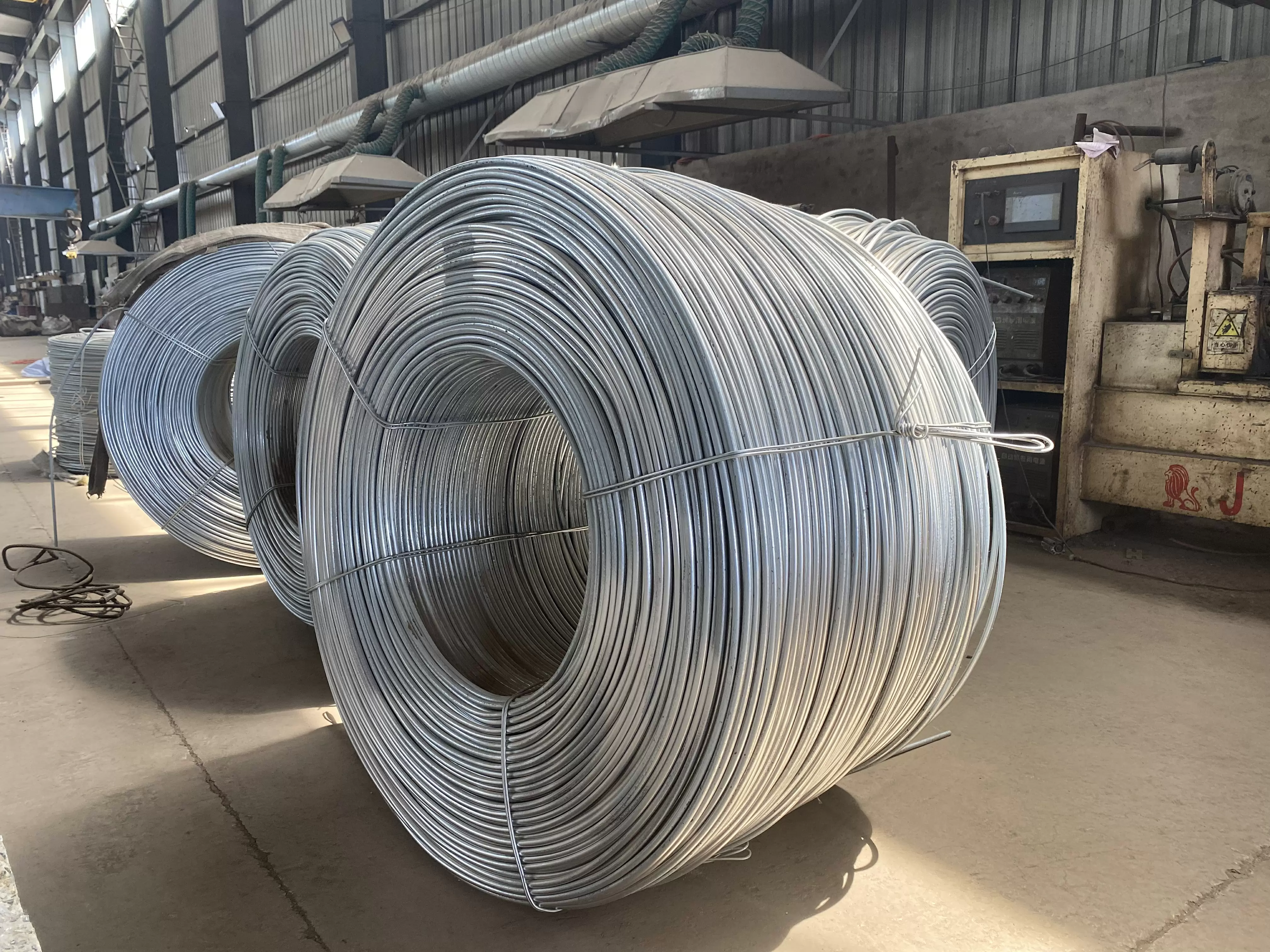

galvanized steel wire
Popular Recommend Hot Dipped Galvanized Steel Wire Rope
E-mail：admin@steel-cn.com
TEL：008613026578856
WhatsApp：008613026578856
Contact us
Product Details
DETAILS
| Galvanized Steel Wire Stand ASTM-A475 | ||||||
| Number of Wires/Dia. | Approx.Strand Dia. | Siemem Martin Grade | High Strength Grade | Extra-high Strength Grade | Approx.Weight | |
| Inch | mm | KN | KN | KN | kg/km | |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | - | - | - | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
| 19/5.08 | 1 | 25.4 | 209.066 | 325.61 | 464.839 | 2384 |
| 37/3.63 | 1 | 25.4 | 205.508 | 319.827 | 456.832 | 3061 |
| 37/4.09 | 11/8 | 28.58 | 262 | 407.457 | 581.827 | 4006 |
| 37/4.55 | 11/4 | 31.75 | 324.72 | 505.318 | 721.502 | 4833 |
| Galvanized Steel Wire Strand BS 183 : 1972 | |||||||||
| Number of wires/Dia. | Approx.Strand Dia. | Minimum Breaking Load of Strand | Approx. Weight | ||||||
| Grade 350 | Grade 480 | Grade 700 | Grade 850 | Grade 1000 | Grade 1150 | Grade 1300 | |||
| mm | kN | kN | kN | kN | kN | kN | kN | kg/km | |
| 3/1.80 | 3.9 | 2.65 | 3.66 | - | - | - | - | - | 60 |
| 3/2.65 | 5.7 | 5.80 | 7.95 | - | - | - | - | - | 130 |
| 3/3.25 | 7 | 8.70 | 11.95 | - | - | - | - | - | 195 |
| 3/4.00 | 8.6 | 13.20 | 18.10 | - | - | - | - | - | 295 |
| 4/1.80 | 4.4 | 3.55 | 4.90 | - | - | - | - | - | 80 |
| 4/2.65 | 6.4 | 7.70 | 10.60 | - | - | - | - | - | 172 |
| 4/3.25 | 7.9 | 11.60 | 15.90 | - | - | - | - | - | 260 |
| 4/4.00 | 9.7 | 17.60 | 24.10 | 35.20 | - | - | - | - | 390 |
| 5/1.50 | 4.1 | 3.10 | 4.24 | 6.18 | - | - | - | - | 69 |
| 5/1.80 | 4.9 | 4.45 | 6.10 | 8.90 | - | - | - | - | 95 |
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.30 | - | - | - | - | 220 |
| 5/3.25 | 8.8 | 14.50 | 19.90 | 29.00 | - | - | - | - | 320 |
| 5/4.00 | 10.8 | 22.00 | 30.15 | 43.95 | - | - | - | - | 490 |
| 7/0.56 | 1.7 | 0.60 | 0.83 | 1.20 | - | 1.70 | 1.98 | 2.24 | 14 |
| 7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | - | 2.75 | 3.19 | 3.60 | 28 |
| 7/0.85 | 2.6 | 1.39 | 1.90 | 2.80 | - | 3.95 | 4.57 | 5.15 | 31 |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3..1 | - | 4.45 | 5.12 | 5.80 | 35 |
| 7/1.00 | 3 | 1.92 | 2.64 | 3.85 | - | 5.50 | 6.32 | 7.15 | 43 |
| 7/1.25 | 3.8 | 3.01 | 4.10 | 6.00 | - | 8.55 | 9.88 | 11.15 | 67 |
| 7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14.00 | 84 |
| 7/1.60 | 4.8 | 4.90 | 6.75 | 9.85 | 11.95 | 14.10 | 16.20 | 18.30 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | - | 17.80 | 20.50 | 23.20 | 140 |
| 7/2.00 | 6.0 | 7.70 | 10.55 | 15.40 | - | 22.00 | 25.30 | 28.60 | 170 |
| 7/2.36 | 7.1 | 10.70 | 14.70 | 21.40 | - | 30.60 | 35.20 | 39.80 | 240 |
| 7/2.65 | 8.0 | 13.50 | 18.50 | 27.00 | - | 38.60 | 44.40 | 50.20 | 300 |
| 7/3.00 | 9.0 | 17.30 | 23.75 | 34.65 | - | 49.50 | 56.90 | 64.30 | 392 |
| 7/3.15 | 9.5 | 19.10 | 26.20 | 38.20 | - | 54.55 | 62.75 | 70.90 | 430 |
| 7/3.25 | 9.8 | 20.30 | 27.85 | 40.65 | - | 58.05 | 66.80 | 75.50 | 460 |
| 7/3.65 | 11.0 | 25.60 | 35.15 | 51.25 | - | 73.25 | 84.20 | 95.20 | 570 |
| 7/4.00 | 12.0 | 30.90 | 42.20 | 61.60 | - | 88.00 | 101.00 | 114.00 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.50 | - | 99.30 | 114.00 | 129.00 | 780 |
| 7/4.75 | 14.0 | 43.40 | 59.45 | 86.80 | - | 124.00 | 142.70 | 161.30 | 970 |
| 19/1.00 | 5.0 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.40 | 120 |
| 19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 | 180 |
| 19/1.40 | 7.0 | 10.24 | 14.04 | 20.47 | - | 29.25 | 33.64 | 38.02 | 230 |
| 19/1.60 | 8.0 | 13.37 | 18.35 | 26.75 | - | 38.20 | 43.93 | 49.66 | 300 |
| 19/2.00 | 10.0 | 20.90 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.60 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.80 | 65.29 | 79.28 | 93.27 | 107.30 | 121.30 | 730 |
| 19/3.00 | 15.0 | 47.00 | 64.50 | 94.00 | 114.10 | 134.30 | 154.50 | 174.60 | 1050 |
| 19/3.55 | 17.8 | 65.80 | 90.27 | 131.60 | 159.90 | 188.00 | 216.30 | 244.50 | 1470 |
| 19/4.00 | 20.0 | 83.55 | 114.60 | 167.10 | 203.00 | 238.70 | 274.60 | 310.40 | 1870 |
| 19/4.75 | 23.8 | 117.85 | 161.40 | 235.70 | 286.00 | 336.70 | 387.20 | 437.70 | 2630 |
| Galvanized Steel Wire Strand For Optical Fiber Cable | ||||||||||
| Con. | Dia. mm | Dia. strand mm | cross-section mm2 | Tensile strength, (Mpa ) | Zinc Coating Mass No Less Than (g/m2) | weight kg/km | ||||
| 1370 | 1470 | 1570 | 1670 | 1770 | ||||||
| Minmium breaking force(KN) | ||||||||||
| 1*7 | 0.33 | 1.00 | 0.60 | 0.80 | 5 | 4.9 | ||||
| 0.40 | 1.20 | 0.88 | 1.0 | 5 | 7.1 | |||||
| 0.60 | 1.80 | 1.98 | 2.80 | 5 | 16.0 | |||||
| 0.80 | 2.40 | 3.52 | 3.04 | 10 | 28.5 | |||||
| 0.90 | 2.70 | 4.45 | 6.43 | 10 | 36.0 | |||||
| 1.00 | 3.00 | 5.50 | 7.99 | 20 | 44.5 | |||||
| 1.20 | 3.60 | 7.92 | 10.71 | 20 | 64.0 | |||||
| 1.40 | 4.20 | 10.78 | 14.58 | 20 | 87.2 | |||||
| 1.60 | 4.80 | 14.07 | 17.73 | 20 | 113.8 | |||||
| 1.80 | 5.40 | 17.87 | 22.45 | 20 | 144.0 | |||||
| 2.00 | 6.00 | 21.99 | 27.72 | 20 | 177.8 | |||||
Technical Data
| Intensity level | Wirediameter | Min. tensile strength | Min. stress with 1% extension | Min. extension percentage when L=250 | Min. No. of 3600 twist |
| mm | Mpa | Mpa | % | ||
| General | 1.24~2.25 | 1340 | 1170 | 3.0 | 16 |
| 2.25~2.75 | 1310 | 1140 | 3.0 | 16 | |
| 2.75~3.00 | 1310 | 1140 | 3.5 | 16 | |
| 3.00~3.50 | 1290 | 1100 | 3.5 | 14 | |
| 3.50~4.25 | 1290 | 1100 | 4.0 | 12 | |
| 4.25~4.75 | 1290 | 1100 | 4.0 | 12 | |
| 4.75~5.50 | 1290 | 1100 | 4.0 | 12 | |
| High | 1.24~2.25 | 1450 | 1310 | 2.5 | 16 |
| 2.25~2.75 | 1410 | 1280 | 2.5 | 16 | |
| 2.75~3.00 | 1410 | 1280 | 3.0 | 16 | |
| 3.00~3.50 | 1410 | 1240 | 3.0 | 14 | |
| 3.50~4.25 | 1380 | 1170 | 3.0 | 12 | |
| 4.25~4.75 | 1380 | 1170 | 3.0 | 12 | |
| 4.75~5.50 | 1380 | 1170 | 3.0 | 12 | |
| Very high | 1.24~2.25 | 1620 | 1450 | 2.0 | 14 |
| 2.25~2.75 | 1590 | 1410 | 2.0 | 14 | |
| 2.75~3.00 | 1590 | 1410 | 2.5 | 12 | |
| 3.00~3.50 | 1550 | 1380 | 2.5 | 12 | |
| 3.50~4.25 | 1520 | 1340 | 2.5 | 10 | |
| 4.25~4.75 | 1520 | 1340 | 2.5 | 10 | |
| 4.75~5.50 | 1520 | 1270 | 2.5 | 10 |
